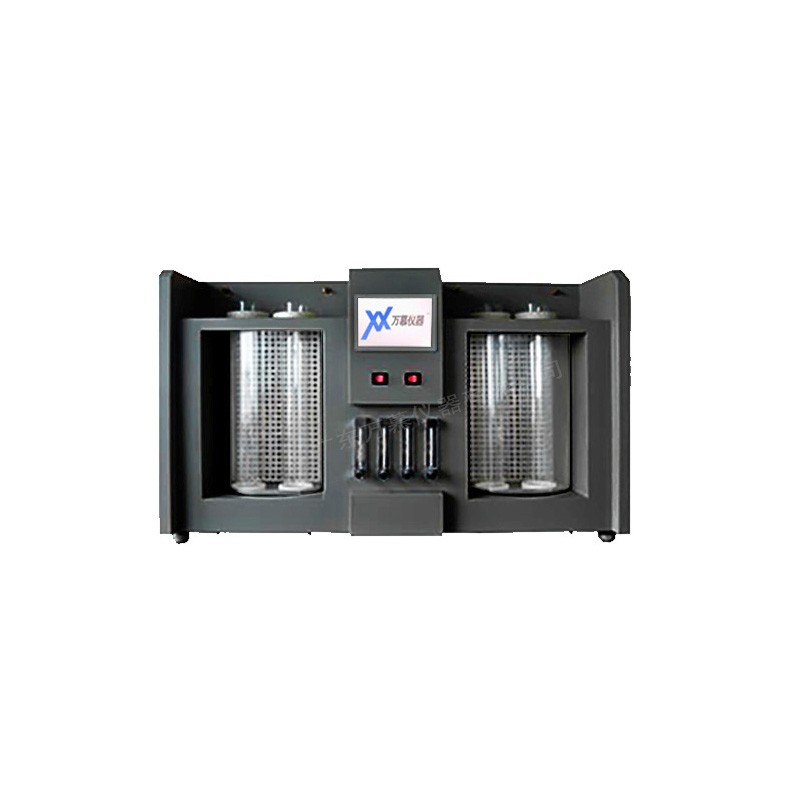

Wm-212a foam property tester

Product features:

1. Implement the national standard GB/ t12579-2002. It is widely used in petroleum, chemical, metallurgy, electric power, transportation, commodity inspection and scientific research departments.

2. The core host adopts TI AM3354 processor, cortex-a8 kernel, 1GHz main frequency; The operating system adopts Windows Embedded Compact 7 real-time industrial control system.

3, running naked SCM, truly realize the modernization of instrument control, so that the instrument into a new era of intelligence.

4, the display adopts the original imported 7.0-inch LCD screen, the new android Chinese and English system operating interface, the display is delicate, intuitive and generous.

5, the keyboard USES human body induction type touch keys, no mechanical contact, dustproof and waterproof, anti - rf interference, longer service life.

6, temperature measurement and control using imported PT100 platinum resistance temperature sensor, high precision AD converter, excellent linear mathematical model, unique control algorithm, make the temperature measurement and control more rapid, accurate and stable.

7. Simultaneous synchronous and asynchronous determination of the two samples was conducted.

8. The rear USB and 232 serial ports can connect computers and later software upgrades, and export experimental data to computers and USB sticks.

Temperature control range: room temperature ~ 120℃

Temperature control accuracy: 0.1℃

timing time: 0 ~ 99 points

Ambient temperature: room temperature ~ 45

ambient humidity: ≤85%

Power supply voltage: 220±10% V.A. C

Power supply frequency: 50±2.5% Hz

Daily consumption of power: 500W

Size: 900×400×620

Weight: 50Kg
